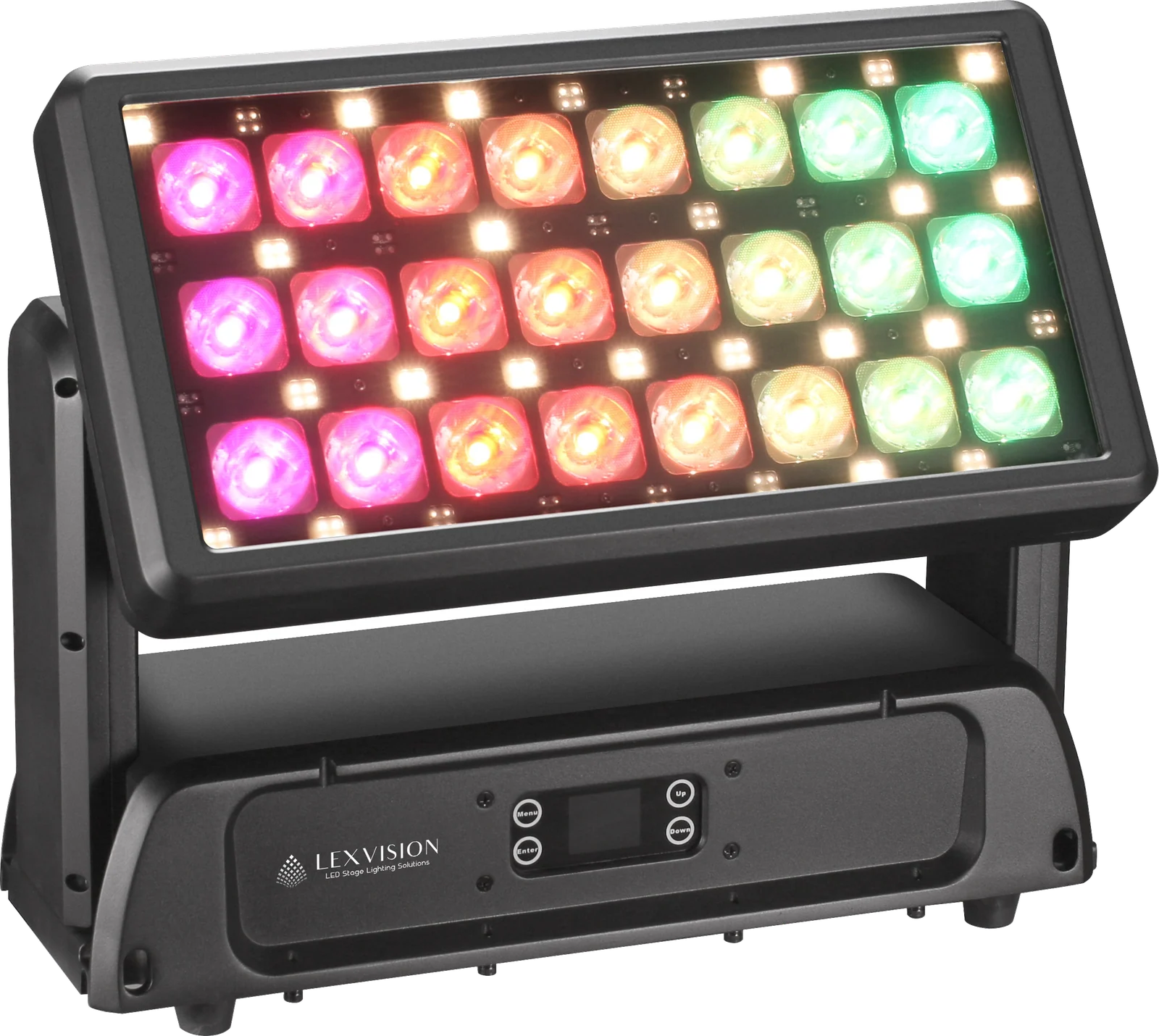

Luminus XS Battery Wash
Luminus Lighttech

Luminus XS Battery Wash

IP65 Akku LED Wash

24 × 10 W RGBW with lithium-ion battery, up to 14 hours runtime, W-DMX and Wi-Fi app. Eight pixel zones, magnetic holographic filters optional.

Light source24x 10W RGBW 4-in-1 LED
Beam angle25 / 30 / 45 Grad (optionale Holografie-Filter)
Ingress protectionIP65
Weight8.0 kg
399,00 €£ 349Net, excl. VAT
Request a quote Downloads
LU-XS-Battery-Wash

Specifications

Light source24x 10W RGBW 4-in-1 LED
Beam angle25 / 30 / 45 Grad (optionale Holografie-Filter)
Pixel8 Pixel-Zonen (16 CH paarweise, 32 CH einzeln)
Lifetime50.000 h
Dimmerelektronisch, 0-100%
Strobeelektronisch, 0-24 Hz
BatteryLithium-Ionen, ca. 7 h Volllast / bis 14 h Economy
DMX channels4/6/11/16/32 Kanaele
ControlW-DMX, DMX-512 / RDM, IR, Master-Slave, Auto, Sound
Wireless2,4 GHz, Group-ID 1-7
AppWLAN-App (LED LAMP)
Power connectorSeetronic TR, AC 100-240V, Kabel 0,75 m
DisplayLCD-Display, 4 Tasten
Ingress protectionIP65
HousingAluminium-Druckguss, schwarz / weiss
Dimensions360 (B) x 120 (H) x 268,5 (T)
Weight8.0 kg
Ambient temperature0-40 Grad C
CertificationCE
Photometrics25 Grad: 3.500 lux @2m / 560 lux @5m; 30 Grad: 2.350 lux @2m / 375 lux @5m; 45 Grad: 1.150 lux @2m / 185 lux @5m (Toleranz +/-10%)
