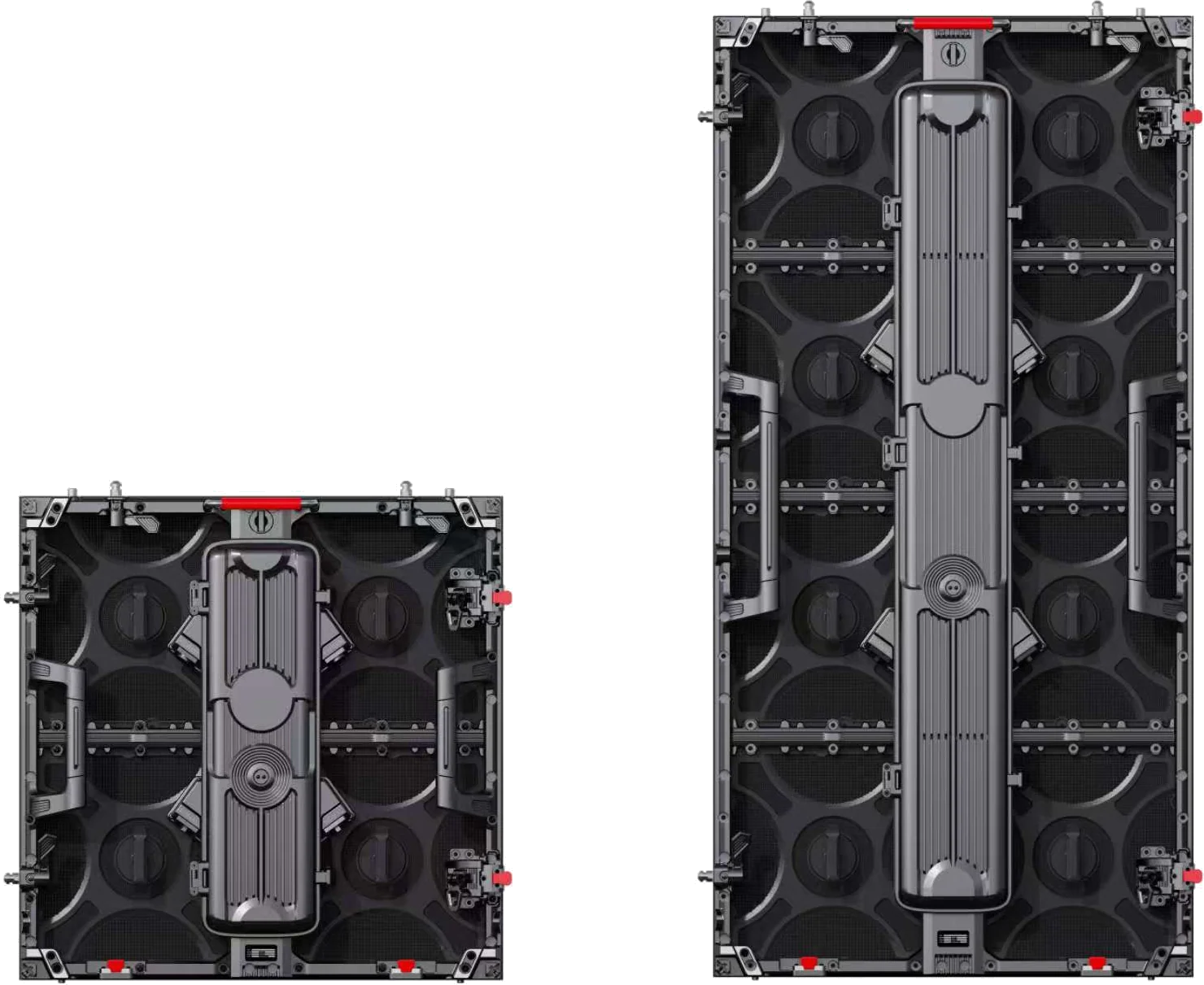

Luminus Lighttech LU-P3.91IP-LED-Wall
IP65 LED Wall
Weather-proof outdoor LED wall with 3.91 mm pixel pitch, 4,600 nits and integrated Novastar COEX A5S receiving card. IP65 front and rear, for temporary installations.
Light source400 W max. / 125 W Ø je 0,5 m²
Ingress protectionIP65 (Front und Rückseite)
Weight13.0 kg
Variants
| Cabinet | Resolution | Weight | Power | Net price |
|---|---|---|---|---|
| Kabinett 100 x 50 cm | 256 x 128 px | 13.0 kg | 400 W max. / 125 W Ø | 699,00 € £ 609 |
| Kabinett 50 x 50 cm | 128 x 128 px | 9.0 kg | 200 W max. / 63 W Ø | 449,00 € £ 389 |
Net, excl. VAT
LU-P391-IP-LED-Wall
Specifications
| Power | 400 W max. / 125 W Ø je 0,5 m² |
| Lifetime | 60.000 h |
| Power connector | Seetronic TruePower |
| Network | Seetronic RJ45 IP65 |
| Ingress protection | IP65 (Front und Rückseite) |
| Voltage | AC 200-240V, 50/60Hz |
| Housing | Aluminium-Druckguss |
| Weight | 13.0 kg |
| Ambient temperature | −20 °C bis +45 °C (Betrieb), −25 °C bis +55 °C (Lagerung) |
| Pixel pitch | 3.91 mm |
| Brightness | 4600 Nits |
| LED type | 1921 RGB SMD |
| Module size | 250 x 250 |
| Cabinet size | 1000 x 500 x 90 oder 500 x 500 x 90 (B x H x T) |
| Resolution | 256 x 128 (100 x 50 cm) / 128 x 128 (50 x 50 cm) |
| Pixel density | 65.536 px/m² |
| System | Novastar COEX A5S Receiving Card integriert |
| Weight note | 100 x 50 cm; 50 x 50 cm: 9,0 kg |
No login, no form
Downloads & documents
Documents to follow
CE declaration of conformity on requestREQUEST
