Lexvision LV-IP-Tilt-Washer
Lexvision

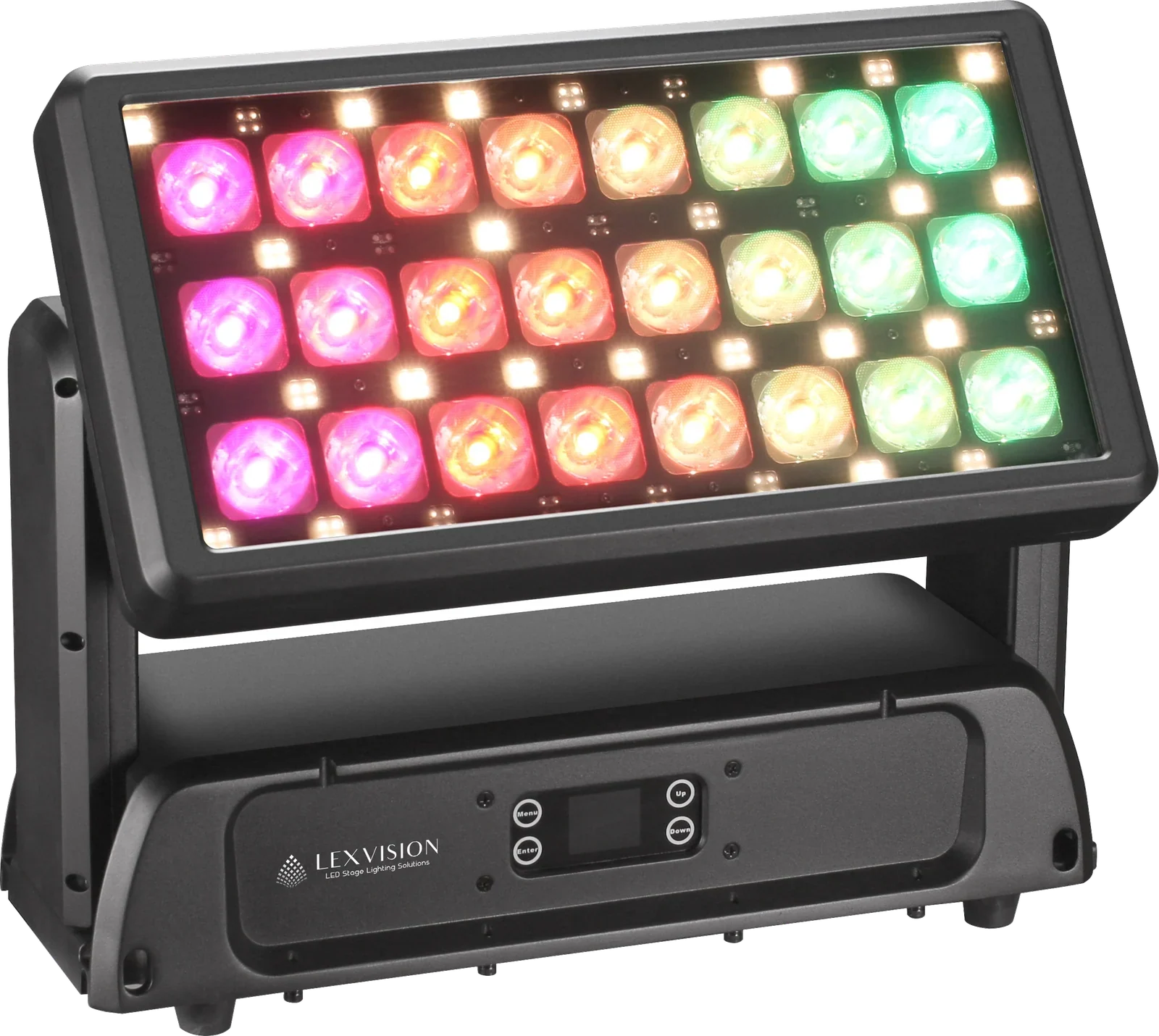

Lexvision LV-IP-Tilt-Washer

IP65 Tilt Washer

24 × 25 W RGBL plus 36 RGBA LEDs, 6° beam angle with electronic frost as a zoom substitute, tilt over 180°. Pixel control, IP65.

Light source24x 25W RGBL-LED + 36x 1,5W RGBA-LED
Beam angle6 Grad + Zoom-Effekt ueber elektronischen Frost-Filter
Ingress protectionIP65
Weight19.0 kg
1.199,00 €£ 1,039Net, excl. VAT
Request a quote Downloads
LV-IP-Tilt-Washer

Specifications

Light source24x 25W RGBL-LED + 36x 1,5W RGBA-LED
OpticsGlaslinsen + dimmbarer elektronischer Frost-Filter
Beam angle6 Grad + Zoom-Effekt ueber elektronischen Frost-Filter
Pixel controlPixel-Steuerung
Pan / tiltTilt 180 Grad
DMX channels14-254 Kanaele
ControlMaster/Slave, Auto, RDM, Art-Net, interne Programme
ConnectorsSeetronic 5-polig XLR IN/OUT + RJ45
Power connectorSeetronic IP65 IN
Display1,50" TFT-LCD, 4 Bedientasten
Coolingaktiv, temperaturgeregelt, Uebertemperaturschutz
Ingress protectionIP65
Power supply800 W
VoltageAC 100-240V, 50/60Hz
Mounting2x Aufhaengepunkte, 1x Sicherungspunkt
Dimensions375 (H) x 493 (B) x 175 (T)
Weight19.0 kg
No login, no form

Downloads & documents

Documents to follow
CE declaration of conformity on requestREQUEST
