Lexvision LV-48/20 LED Wall Washer
Lexvision

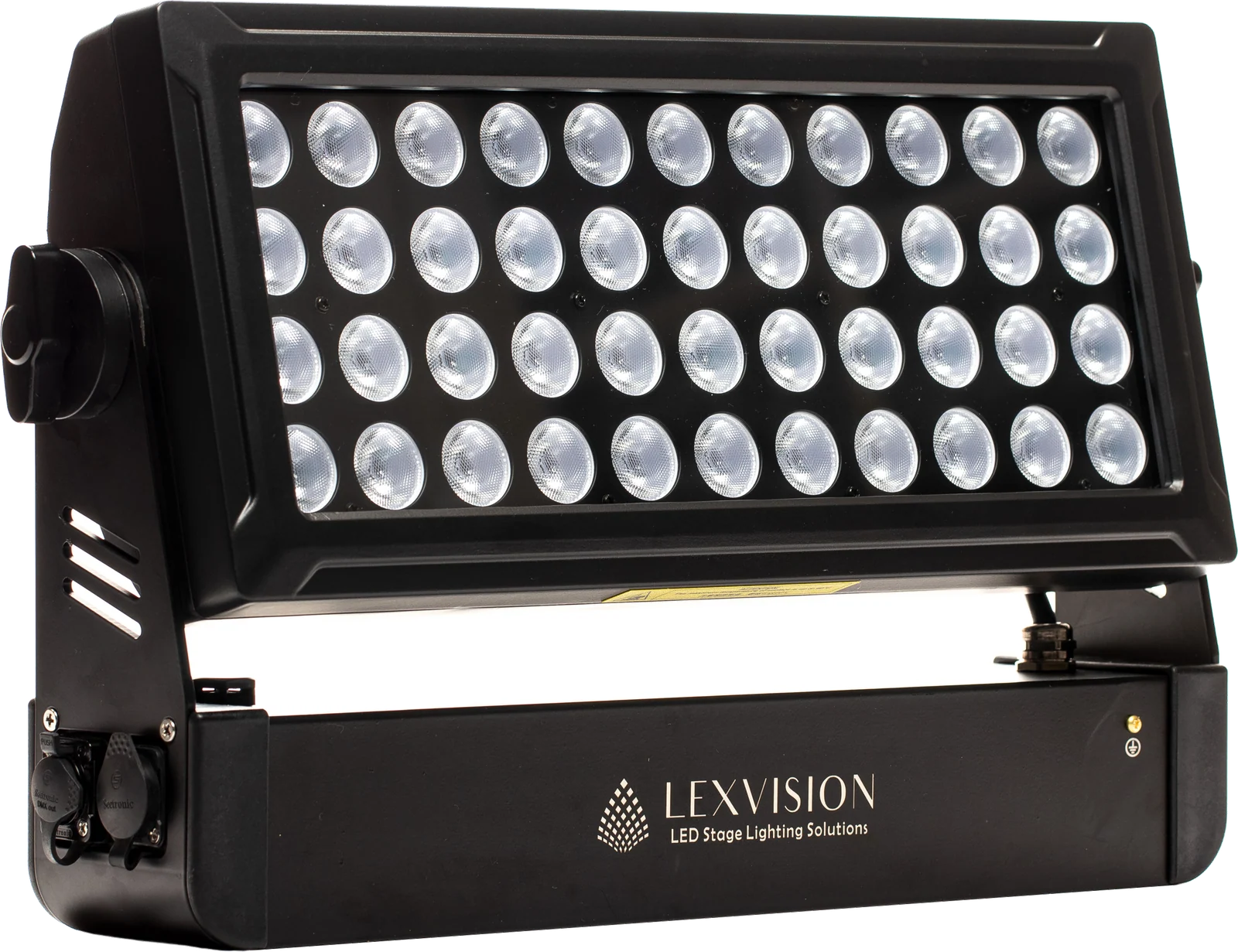

Lexvision LV-48/20 LED Wall Washer

IP65 LED Wall Washer

48 × 20 W RGBW 4-in-1 in eight segments. The big version of the LV-24/20 for façades and wide areas.

Light source48x 20W RGBW 4-in-1 LEDs
Beam angle25 Grad (35/45 Grad optional)
Ingress protectionIP65
Weight10.6 kg
799,00 €£ 689Net, excl. VAT
Request a quote Downloads
LV-48-20

Specifications

Light source48x 20W RGBW 4-in-1 LEDs
Optics48 Acryllinsen, Diffusor-Filter optional (Sonderausfuehrung), 8-fach Torblende optional
Beam angle25 Grad (35/45 Grad optional)
Segments8 individuell ansteuerbar
DMX channels8/13/16/21/25/41 Kanaele
ControlDMX512, RDM, Master-Slave, Auto, W-DMX (optional), interne Programme
WirelessLumenRadio W-DMX (optional)
ConnectorsSeetronic IP65 3-Pin XLR IN/OUT (optional 5-Pin)
Power connectorSeetronic IP65 IN/OUT
Display1.77" TFT LCD, 4 Touch-Tasten
Coolingaktiv, temperaturgeregelt, Uebertemperaturschutz
Ingress protectionIP65
Power supply600 W
VoltageAC 100-240V, 50/60Hz
Mounting2x 1/4-Turn Omega Clamps, 1x Safety
Dimensions570 (B) x 150 (T) x 320 (H)
Weight10.6 kg
No login, no form

Downloads & documents

Documents to follow
CE declaration of conformity on requestREQUEST
